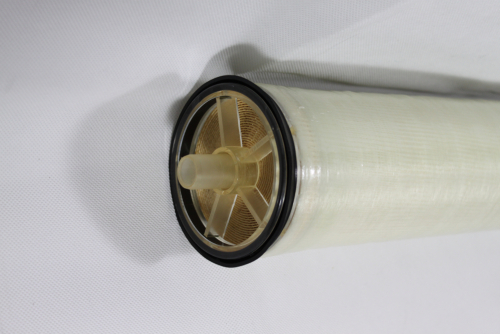

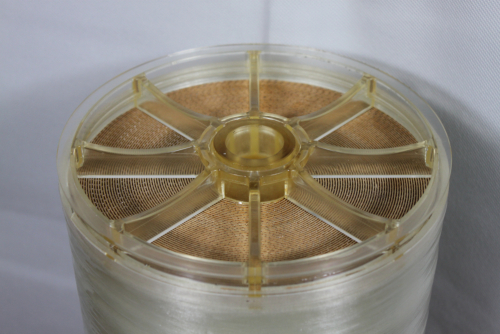

Spiral wound membranes

Elements composed of different packs of membranes, interspersed with special spacing nets, then rolled up on a plastic collector.

The system features an external fibreglass support for industrial processes or a special "rigid" network for health and food processes specially designed to prevent the collapse of the structure on itself.

Thanks to the radial component of the pressure part of the feed fluid permeates through the membrane while, due to the tangential component of the pressure, the "concentrate"  not penetrated is pushed towards the exit of the membrane. This flow, parallel to the structure, therefore contains all the particles too large to cross the membrane thus allowing the self-cleaning of the membrane itself.


This type of membrane has numerous advantages including

- Self-cleaning

- Does not provide heat

- Allows multi-level filtration ( Macromolecular, Molecular and Ionic)

- Allows simple and effective concentration, purification and fractionation


Model list

Reverse Osmosis Membrane XLP 2540

Low pressure; NaCl Rejection: 95%

€ 175.00
Reverse Osmosis Membrane LP 2540

Average/Low pressure; NaCl Rejection: 99%

€ 175.00
Reverse Osmosis Membrane SP 2540

Average pressure; NaCl Rejection: 99,5%

€ 165.00
Reverse Osmosis Membrane XLP 4040

Low pressure; NaCl Rejection: 95%

€ 240.00
Reverse Osmosis Membrane LP 4040

Average/Low pressure; NaCl Rejection: 99,8%

€ 220.00
Reverse Osmosis Membrane SP 4040

Average pressure; NaCl Rejection: 99,8%

€ 215.00
Reverse Osmosis Membrane HP 4040

High pressure; NaCl Rejection: 99,8%

€ 235.00
Reverse Osmosis Membrane LP 8040

Average/Low pressure; NaCl Rejection: 99,8%

€ 585.00
Reverse Osmosis Membrane SP 8040

Average pressure; NaCl Rejection: 99,8%

€ 555.00
Reverse Osmosis Membrane HP 8040

High pressure; NaCl Rejection: 99,8%

€ 615.00
