UF hollow fiber module
This UF hollow fiber module contains SevenBore fiber technology with an inside-out flow orientation. The SevenBore fiber is regarded as the most robust polyether sulfone (PES) product on the market.
Diameter bores ID 0.9 mm (0.04 inch)
Diameter fiber OD 4.0 mm (0.16 inch)
Area 0.25 m2 (3 ft2)
Soaking time during cleaning 5 minutes
Cleaning pH range 1.0-13.0
Hypochlorite (NaOCl) or Hydrogen Peroxide (H2O2) Max 50 to 200 ppm
Maximum operating temperature 40°C (104°F)
Maximum system pressure 5 bars (72.5 psi)
(TMP) at operation <1.0 bar
TMP maximum 2.5 bar
Backwash/forward flush 250 l/m2 h
Permeate flow 25 l/h
pH range during operation 2 to 11
Material housing & connector PVC

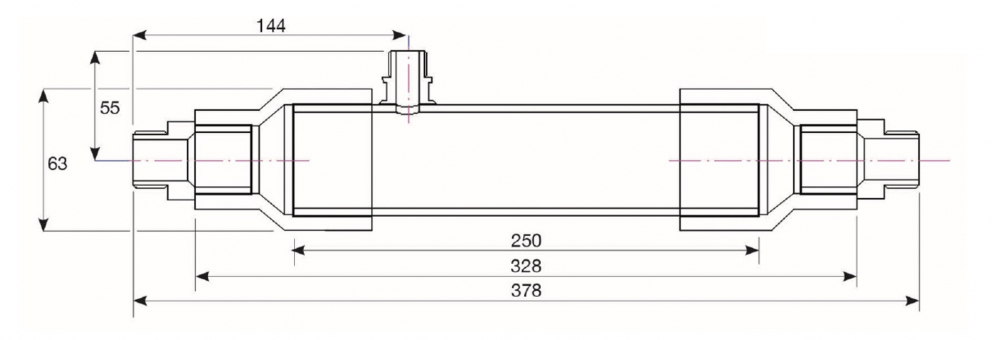

Element length - socket 328 mm
Permeate connection ½ "
Feed connection ½ "
Weight: 1.00 kg
