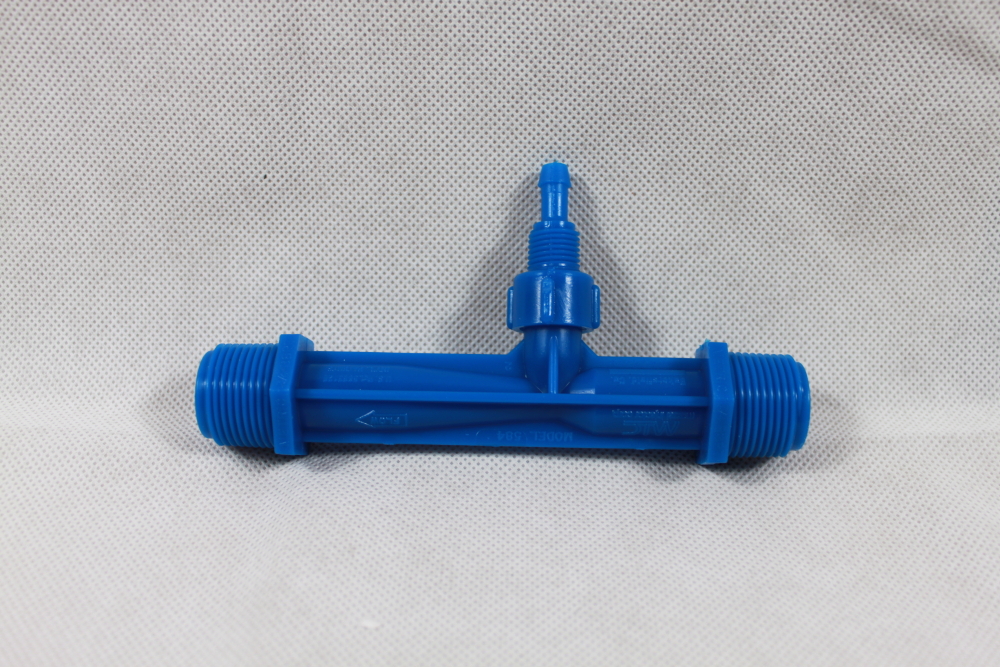

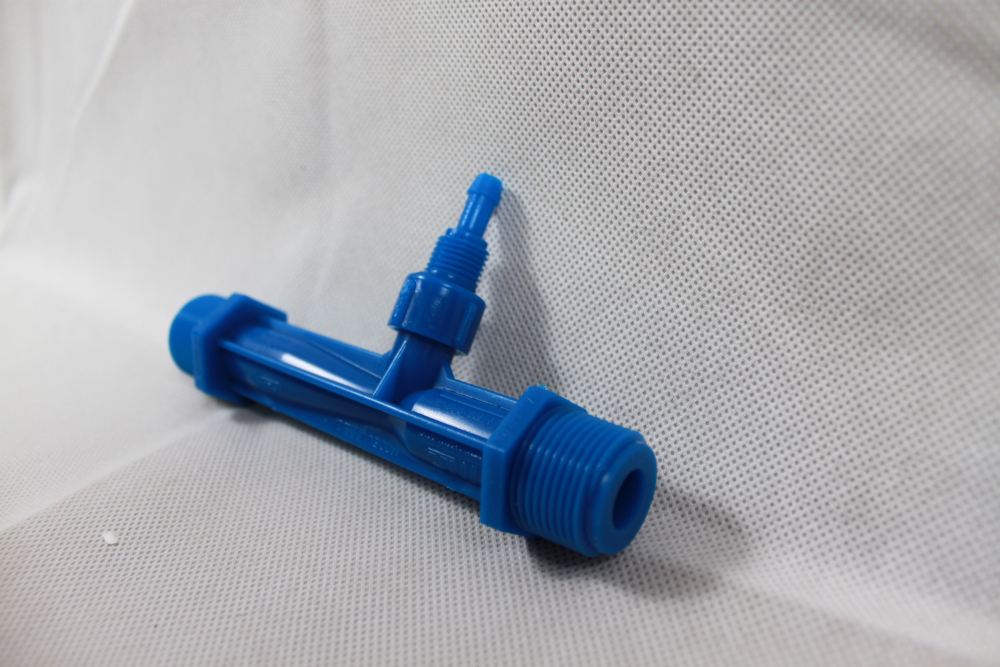

Injector PVDF 584 3/4"

€ 103.00

Model: 3/4” injector PVDF model 584

Motor fluid connections: 3/4” FM

Suction liquid/gas connection: 3/4” FM with hose connector (to check on the boards)

Check valve included

Material: PVDF

INLET motor liquid characteristics: 13,1 l / min @ 1 bar (Output pressure = 0 bar):

  • Flow rate of aspirated gas: 8,2 l/min
  • Flow rate of aspirated liquid: 1,7 l/min


RELATED ARTICLES:

- Check Valve 50  755


Weight: 0.12 kg
