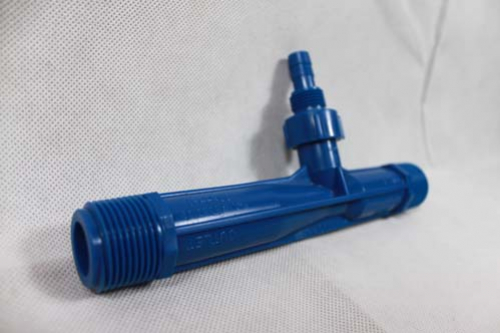

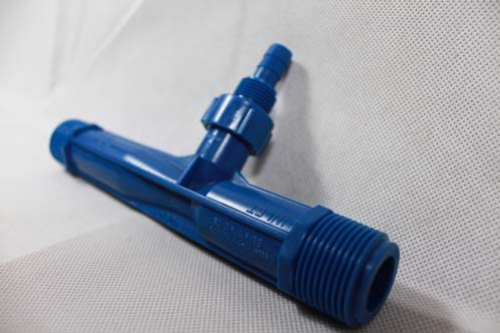

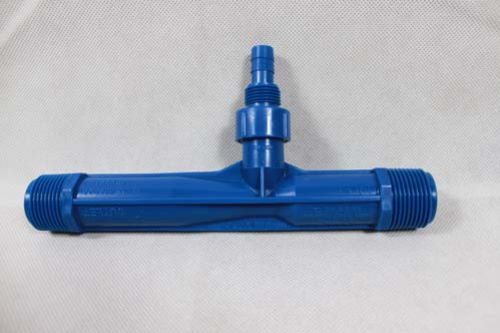

Injector PVDF 1078 1"

€ 269.00

Model: 1” injector PVDF model 1078

Motor fluid connections: 1” FM

Suction liquid/gas connection: 1” FM with hose connector (to check on the boards)

Check valve included

Material: PVDF


INLET motor liquid characteristics: 34,4 l/min @ 1 bar (Output pressure = 0 bar):

  • Flow rate of aspirated gas: 22,9 l/min
  • Flow rate of aspirated liquid: 6,3 l/min


RELATED ARTICLES:

- Check Valve 50  755

Weight: 0.28 kg
