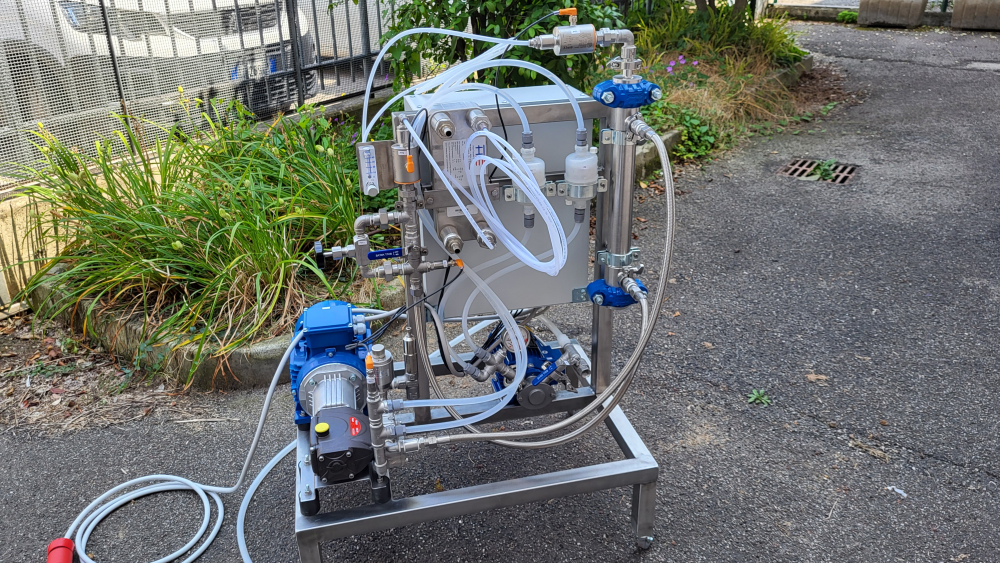

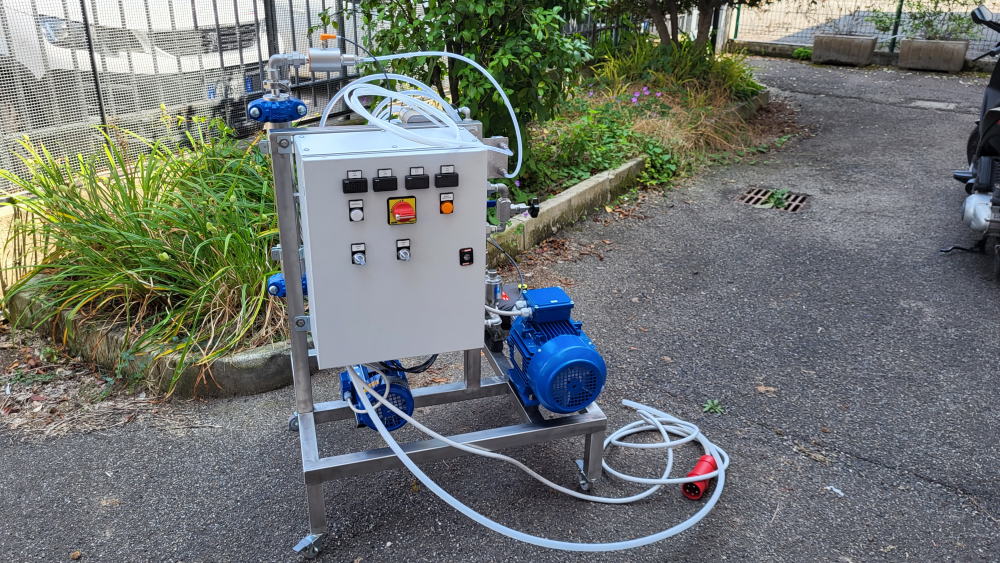

Membratest high pressure pilot plant

€ 16051.70

This multifunctional plant allows the verification of thefeasibility of separation processes through tangential filtration(microfiltration, ultrafiltration, nanofiltration and reverse osmosis)  reproducing on a reduced scale the fluid-dynamicstructure of industrial plants.



The plant includes :



  • Centrifugal preload pump
  • Piston pressure pump with maximumpressure of 50 Bar
  • Pre-filter 9" 3/4 cartridge (AISInetwork, supplied with the appliance or in polypropylene fibre)
  • Housing for high pressure spiral woundpolymer membrane element
  • Control valves, connecting pipesand pressure gauges
  • Support frame in AISI 304



To use  it issufficient to connect the instrumentation to a process line with the liquid tobe treated or to a supply tank previously loaded with an appropriate quantityof sample liquid (normally 10-100 liters) that can also be used for washes.This technology therefore makes it possible to carry out separation by sample,batch or in continuous, also allowing the alternation between polymer andceramic module.


The high adaptability of Membratest allows the verificationof the performance of different types of membrane with limited use of resources(time and material cost) allowing the obtaining of significant scale dataregarding the prediction of the effectiveness of separation (rejection data),permeability, the evolution of soiling and about the most suitable washingmethods for the desidered industrial process. The user can thus assess thefeasibility of a process and produce a forecast of cost, investment andoperation.


For this equipment is available a wide range of optional accessories such as



  • Housing for tubular ceramic diaphragm elementwith connecting pipesFuel tank ( both mounted on the support frame andsupplied separately and connected via hose)
  • Temperature control system (resistance in the tank or outer jaket liner of the tank for hot and cold water passage)
  • Automatic compressed air valves (compressed air line with pressure of 6 Bar required)
  • Visual flow meters for concentrate and permeate
  • PLC with software for production, washing, rinsing and storage
  • Transmitters of :

-         Flow rate

-         Conductivity

-         Pressure

-         PH



For information about these accessories you can contact us before purchasing by clicking here



Related Products:




Products from the same category

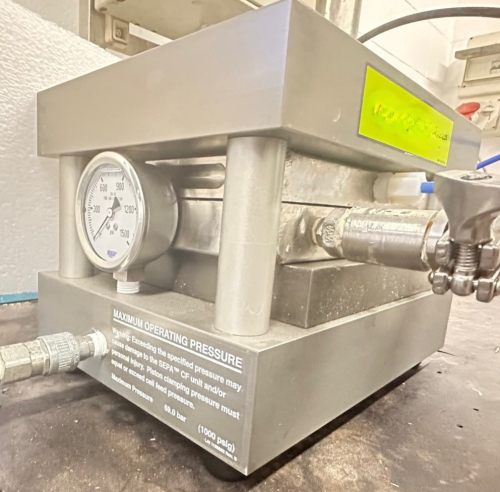

SEPA CF cell
